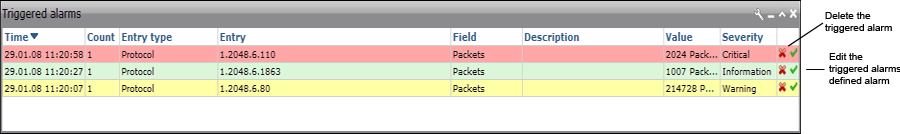

"Triggered alarms" windows show the triggered alarms for a given table or all the triggered alarm windows color coded by their severity. In these windows triggered alarms can be edited and deleted.

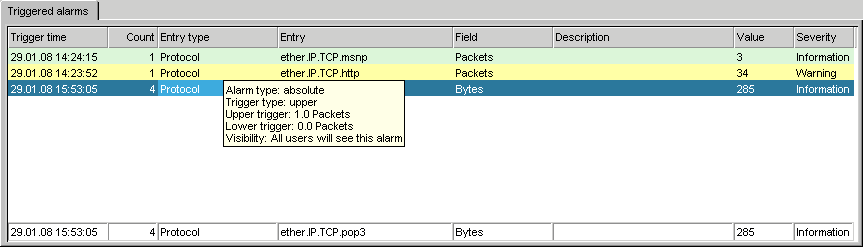

A tooltip with detailed information about a triggered alarm is shown by holding the mouse over a entry in the "Triggered alarms" window.
Delta alarms can be triggered multiple times. The trigger value shown in the "Triggered alarms" window is the last trigger value. To see all trigger value right click on a entry in the window and click on

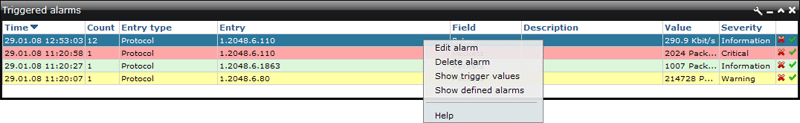

Triggered alarm windows popup menu
Right click on a alarm entry in the one of the triggered alarm windows to view the popup menu.
Edit alarm - this will let you edit the clicked alarms defined alarm.
Delete alarm - this will delete the clicked triggered alarm entry.

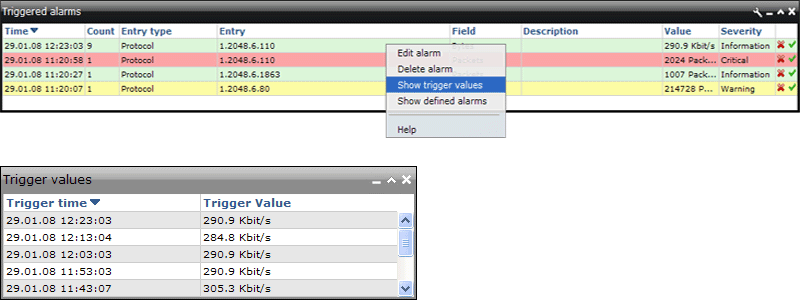

Show trigger values - this will show a new window containing the selected alarms trigger values
Show defined alarms - this will show the defined alarms.
